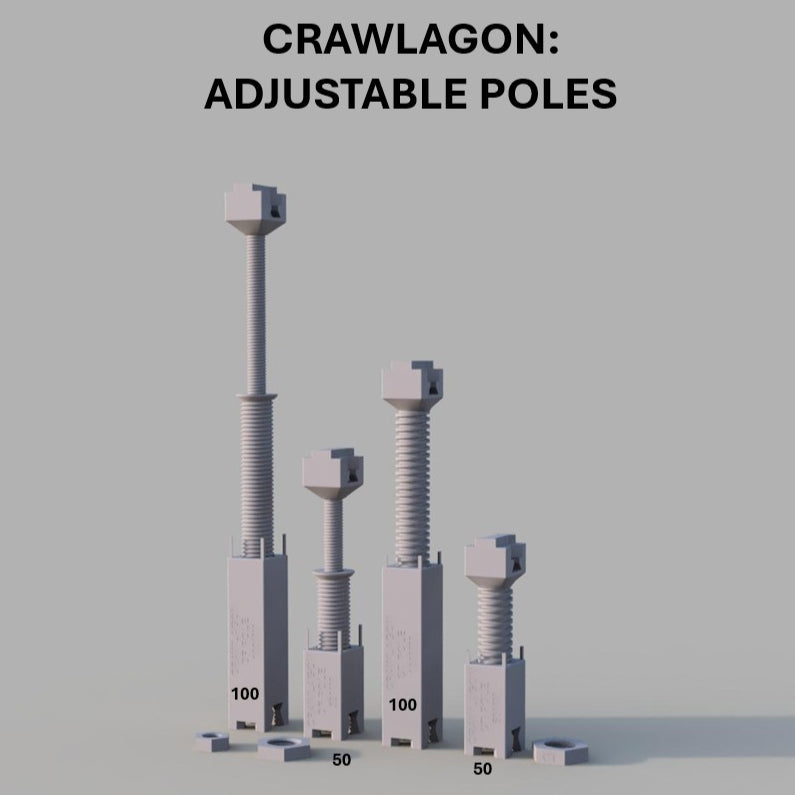

Adjustable Dual Fine Threads (FT) poles: 50mm, 100mm

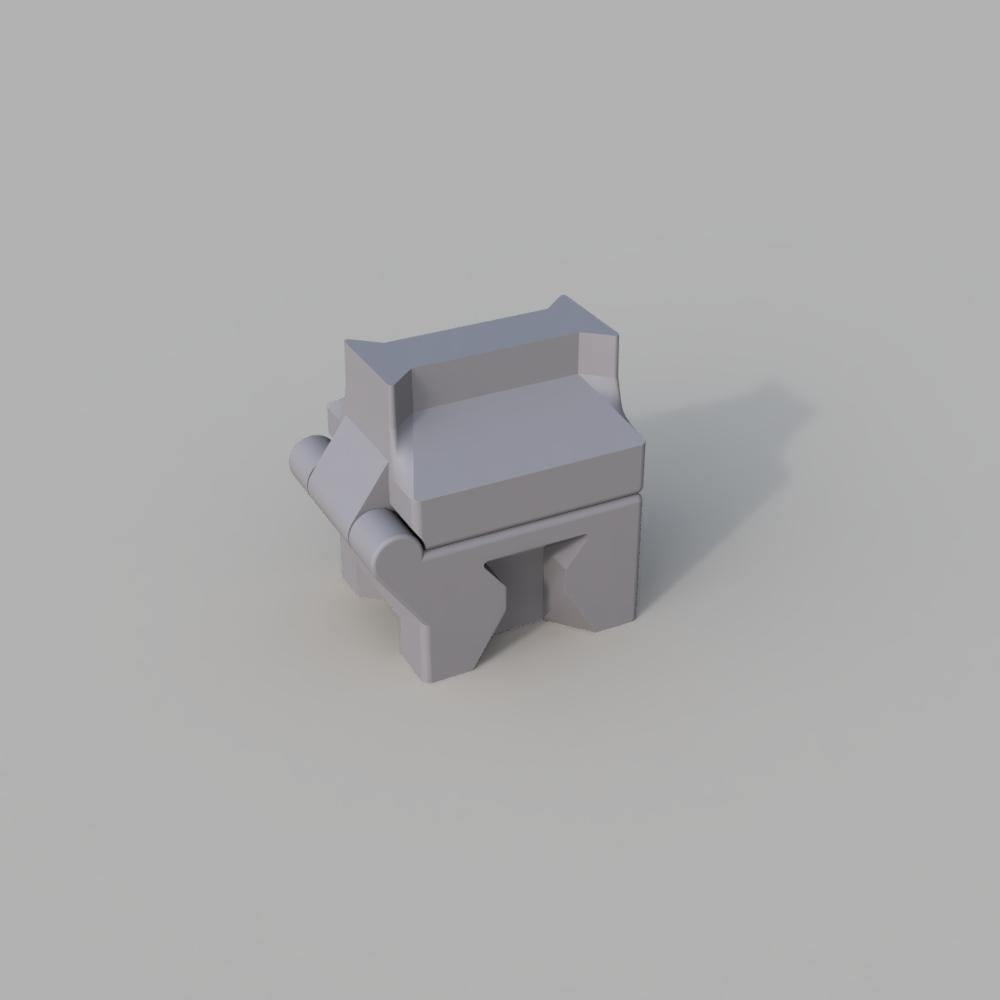

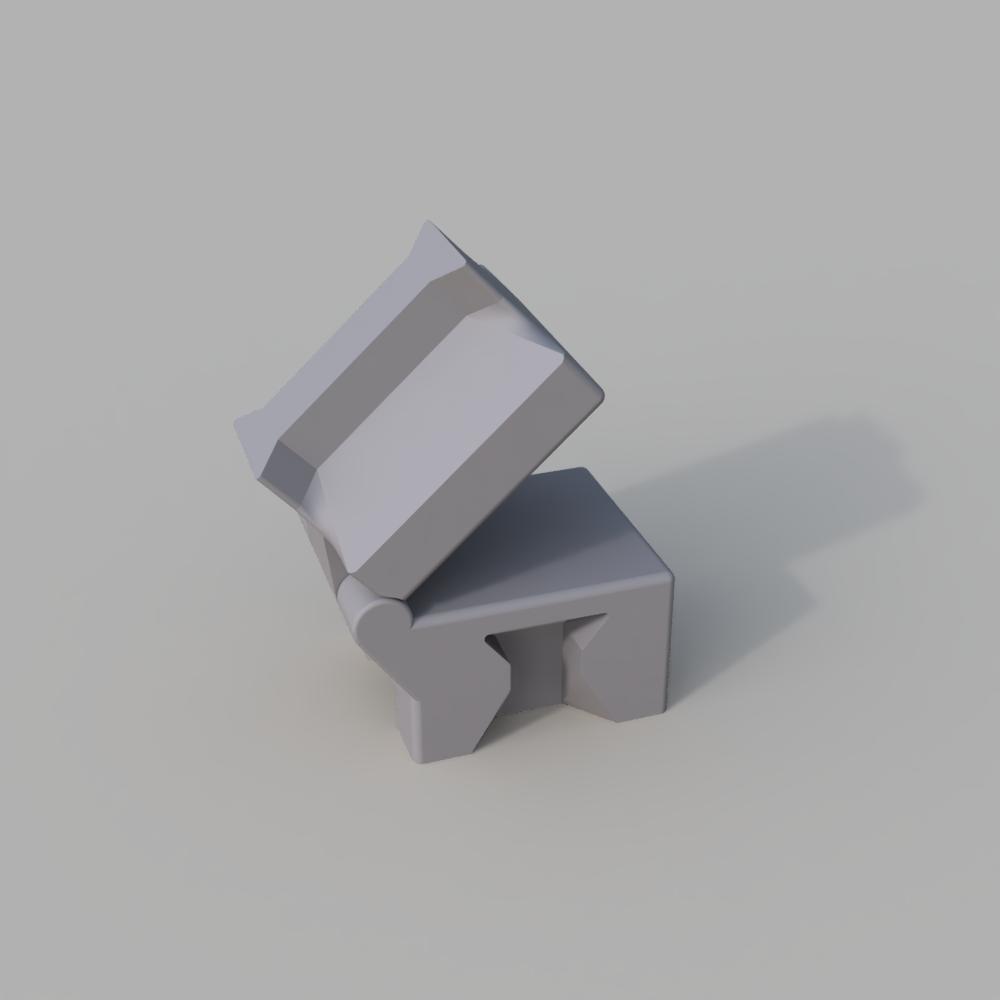

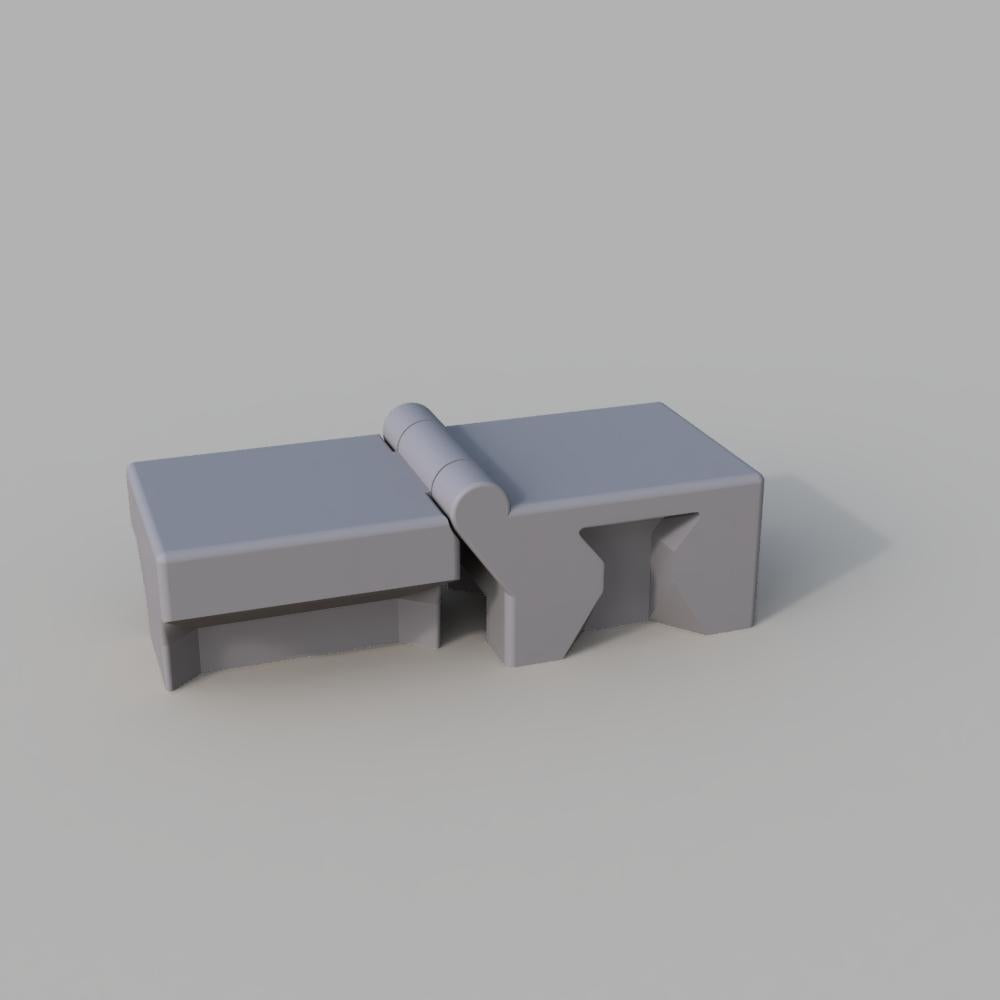

Hinged angle adapter support

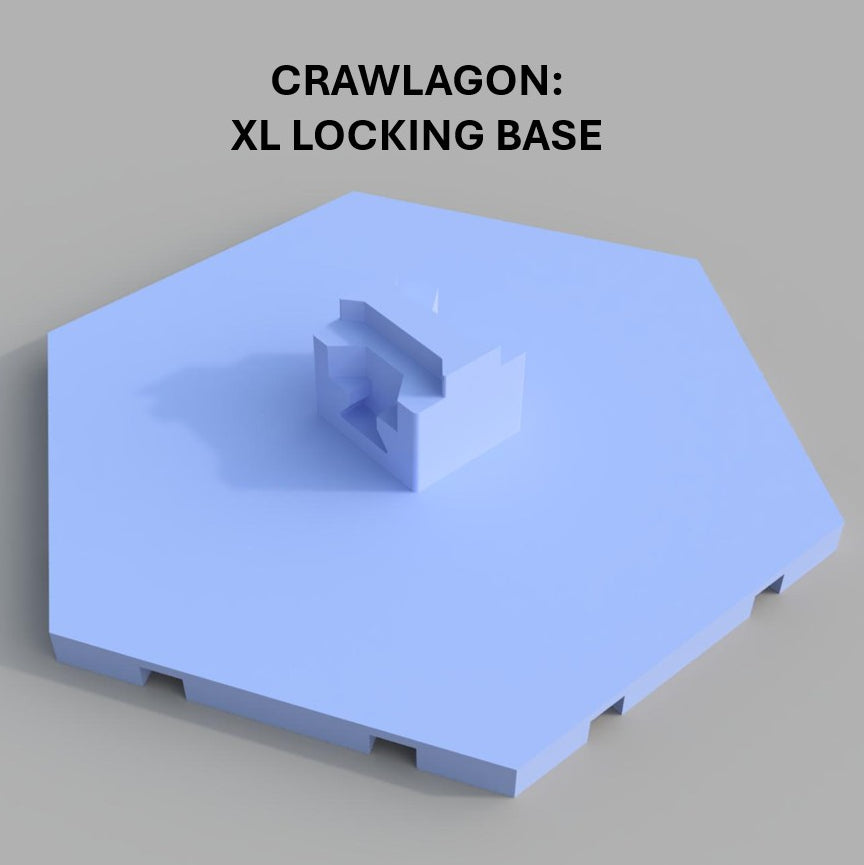

XL Locking Base
Notes:
On the Adjustable poles I had to add some breakaway supports to keep the threads from spinning during printing (ask me how much filament I wasted figuring this one out…)
I suggest printing the adjustable poles vertically and include tree support on plate only. This gives it a little extra bed adhesion.

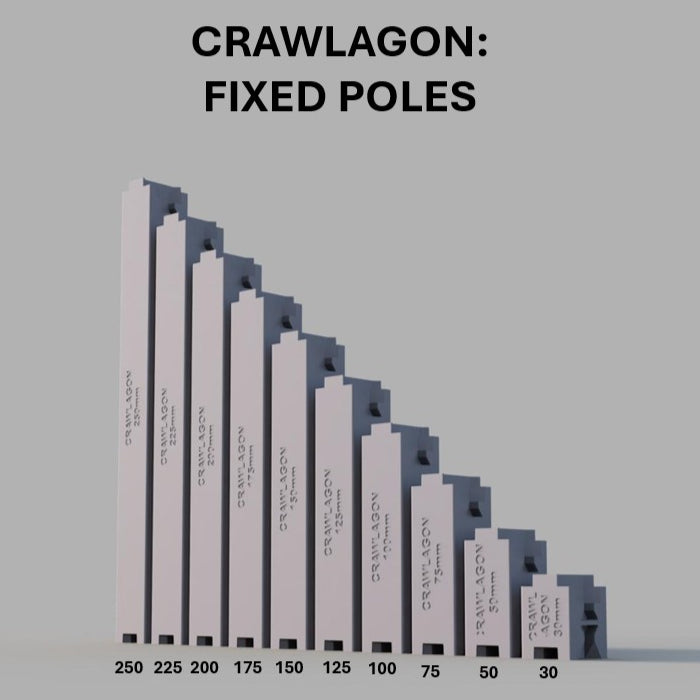

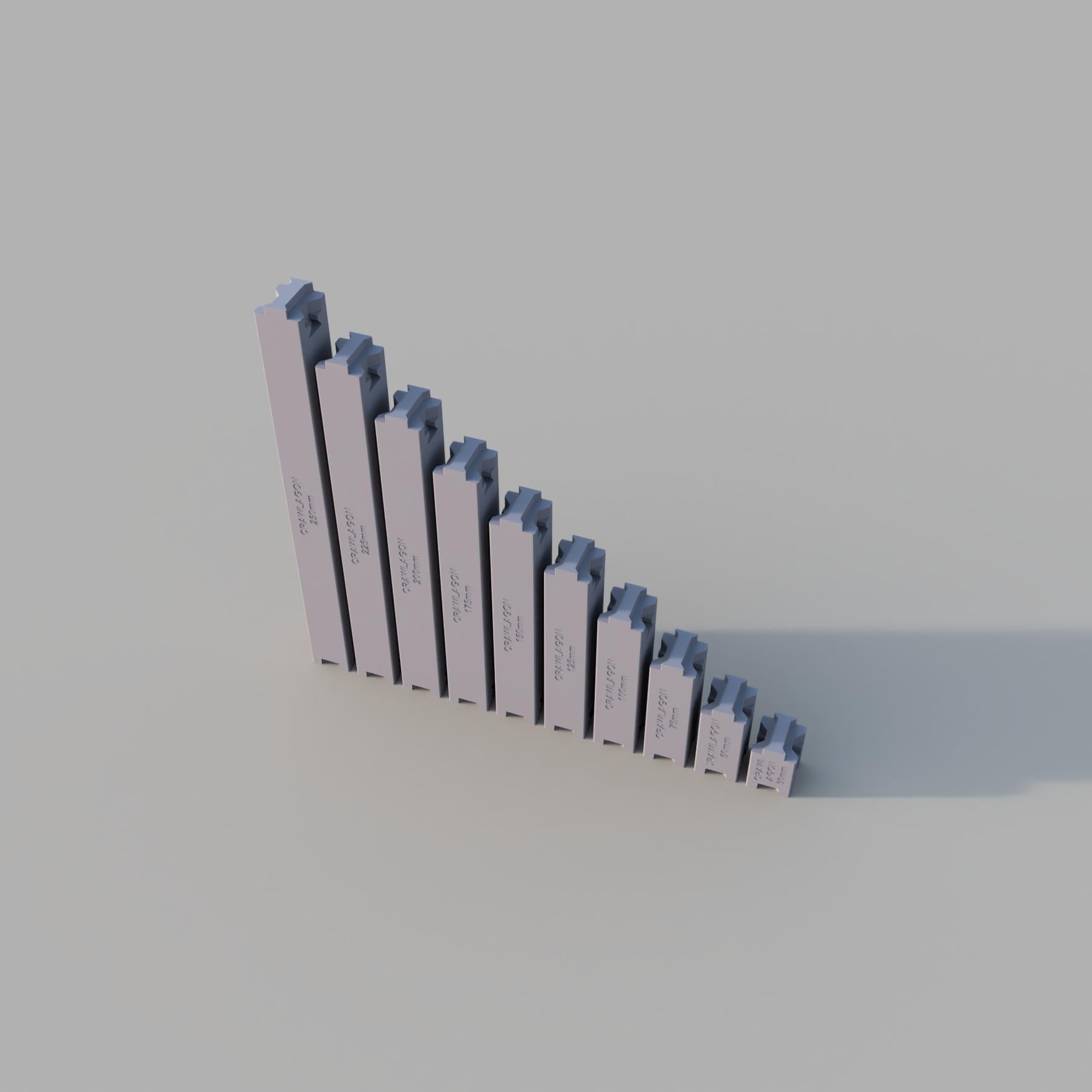

All of the fixed poles you can print flat.
I tried so hard to get print in place Nuts for the adjustable poles but couldn’t get it to work up to my standards anyway, so you will have to print them separate and add them after.
Join our CRAWLAGON facebook group and show off your builds.
ENJOY!!!!
Print Instructions
Level your bed properly to avoid locking pin problems. If you have trouble with leveling, try printing with a raft.
Different sized pins are included to compensate for any bed leveling issues and different materials.
I can print these models on my Bambu Labs A1 without supports, even with sharp undercuts. Other printers might require support structures.
Use a consistent 15% infill setting to avoid fitment problems. Changing infill percentages can affect wall shrinkage. If needed, you can add more wall loops to compensate and additional sized pins are included.
