CRAWLAGON *OBSTACLE 2*
*****3D Print Files Only!*****
Digital Download Only, 3d Print .stl files Only
Test out your FLEX!

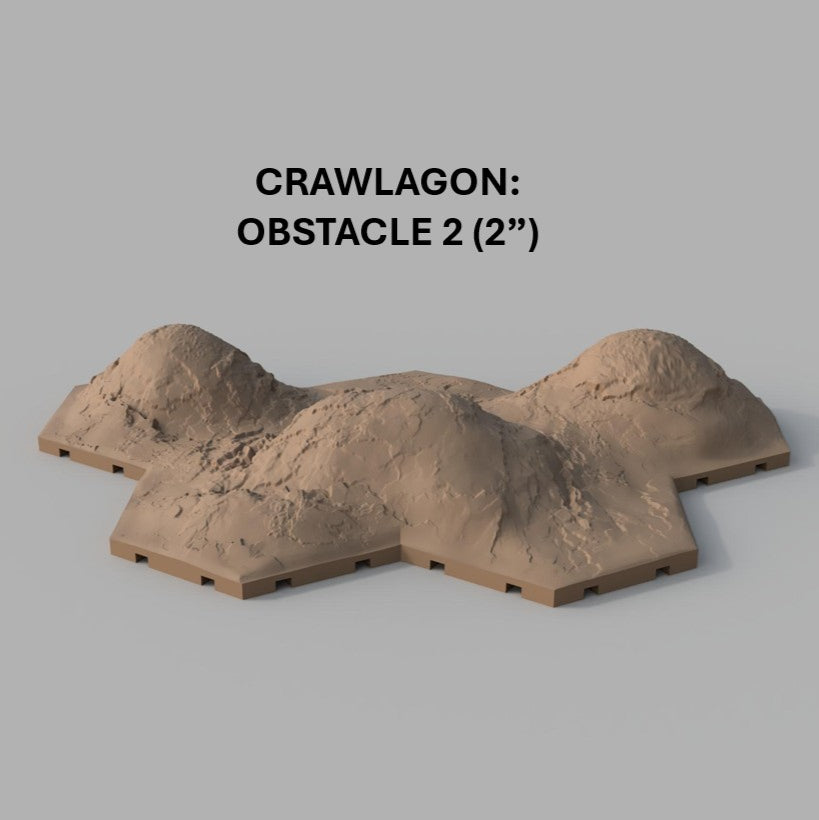

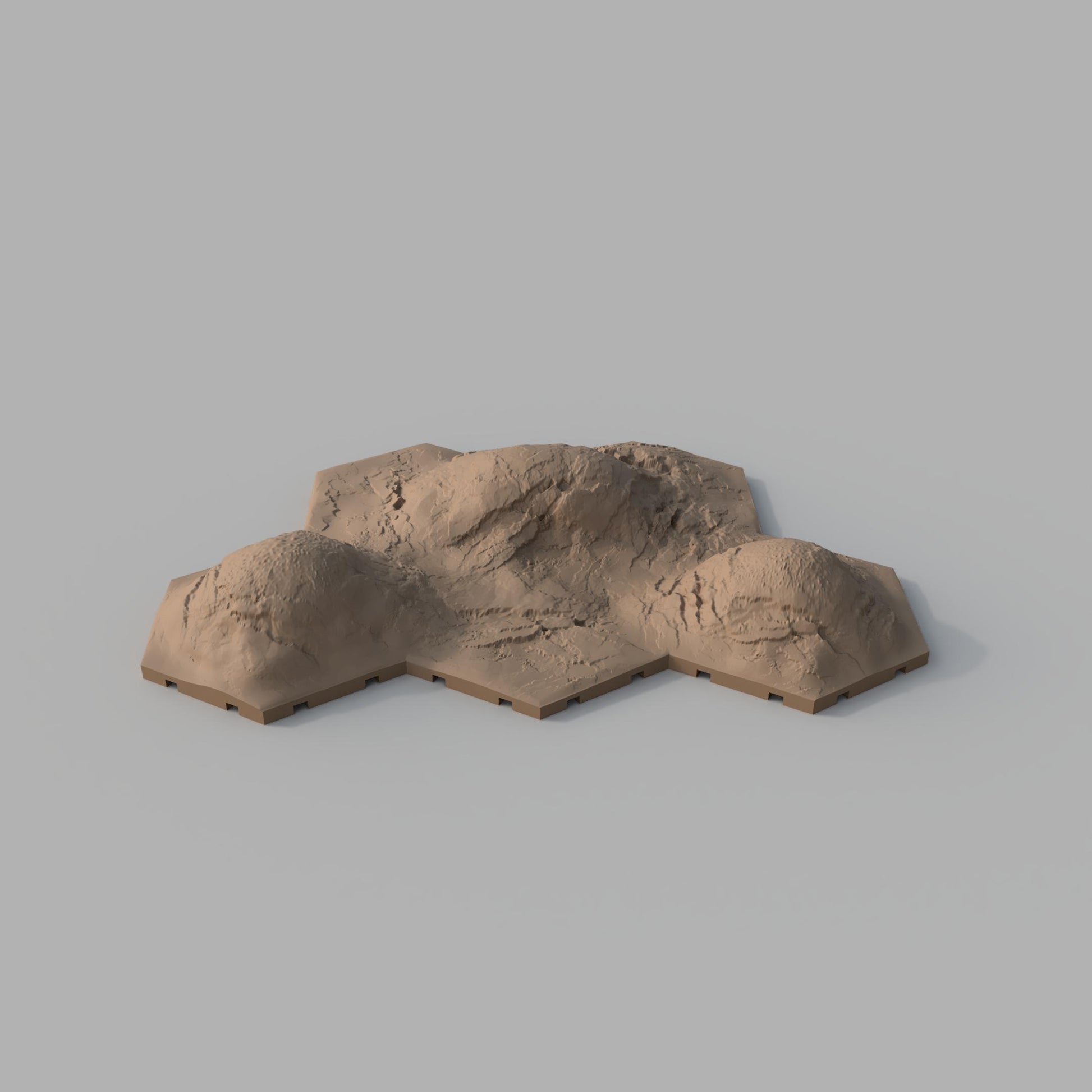

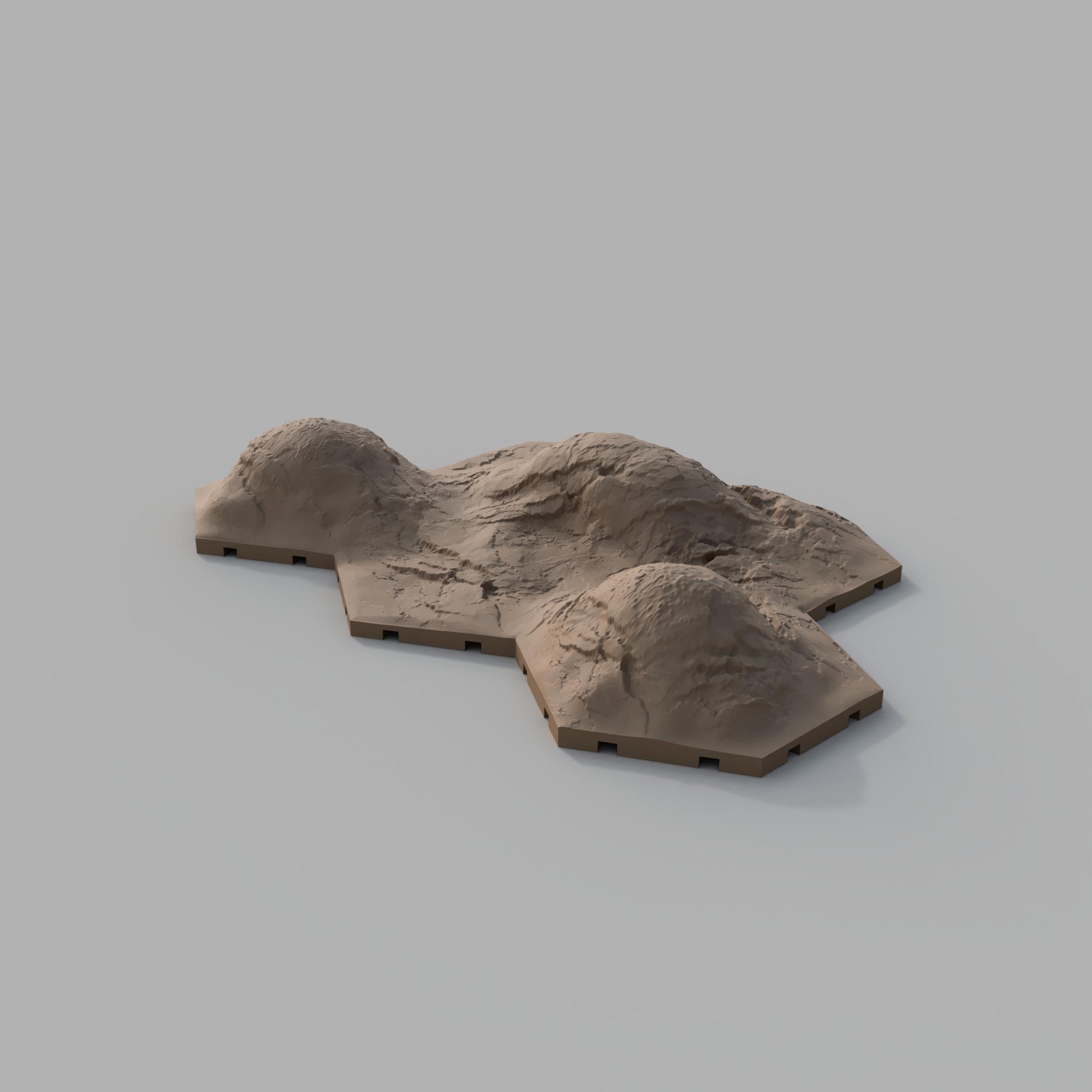

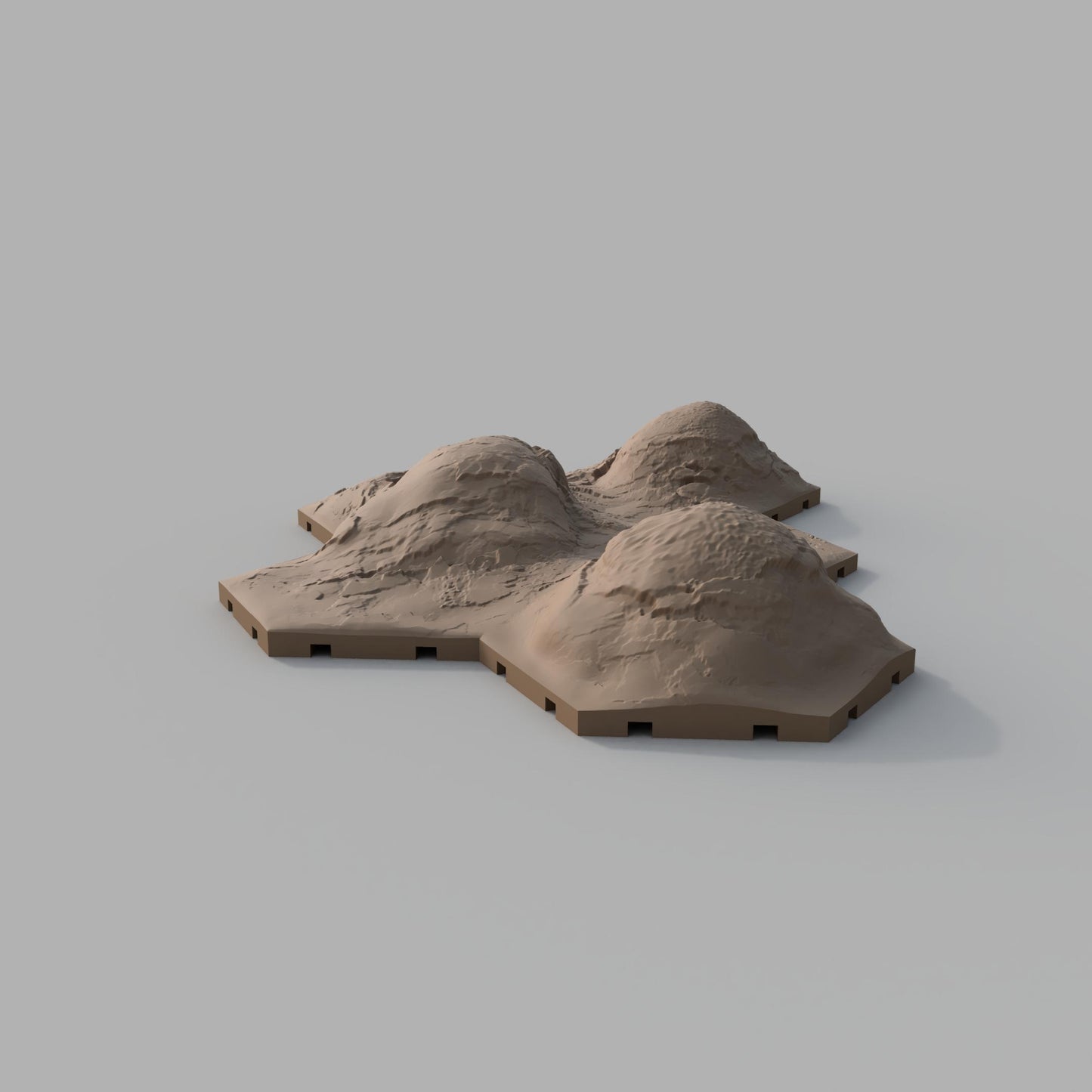

OBSTACLE 2 is a 5 tile obstacle to test out your articulation.

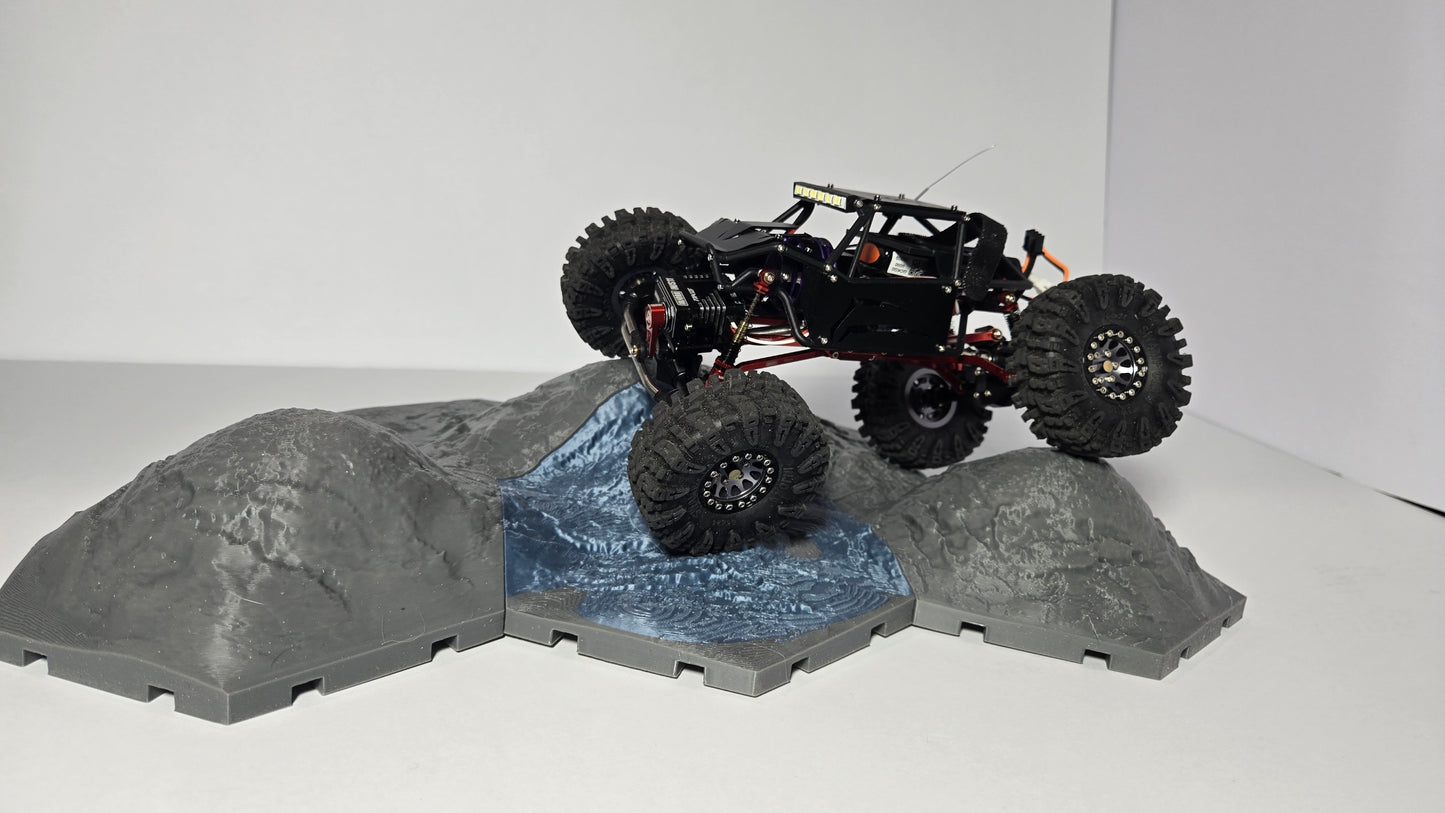

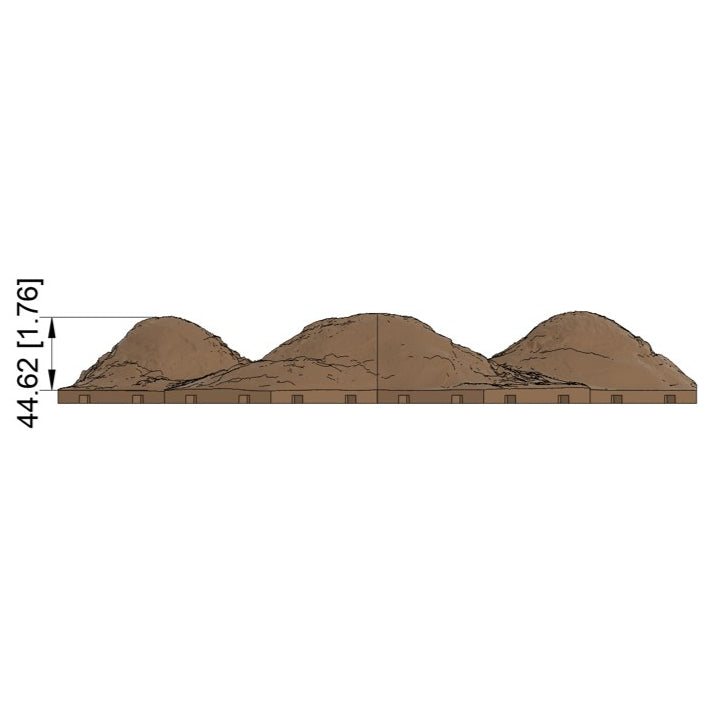

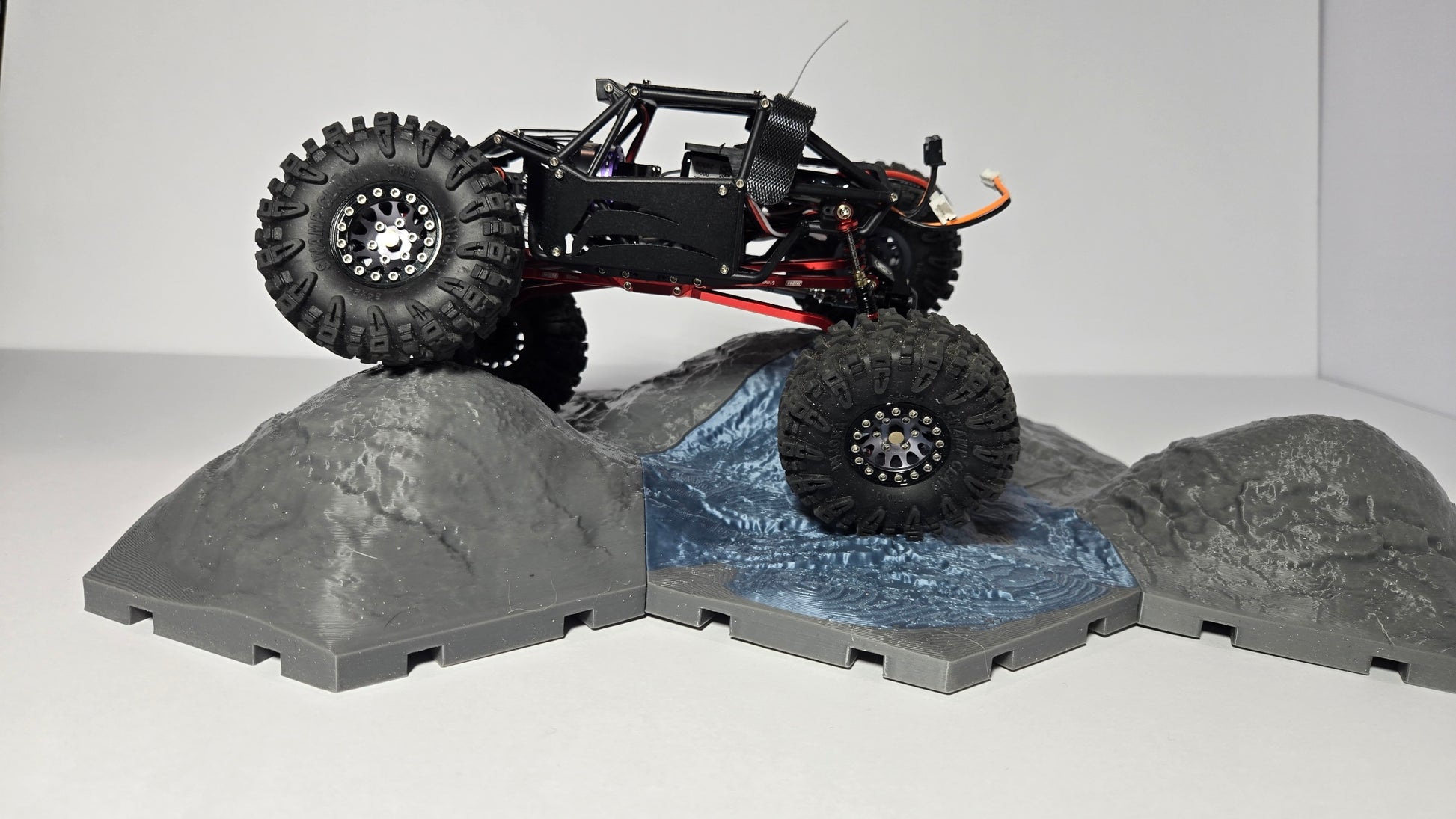

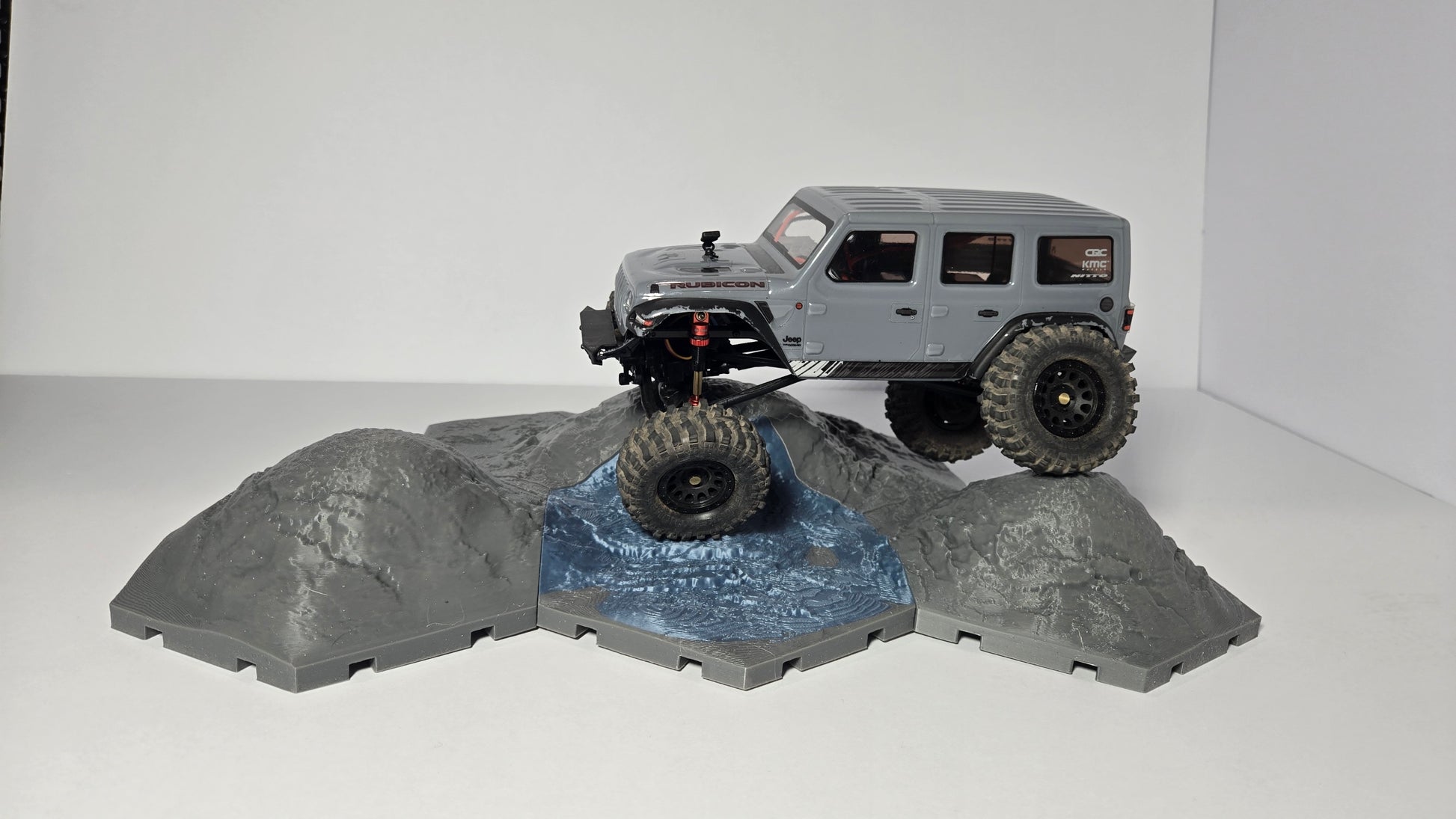

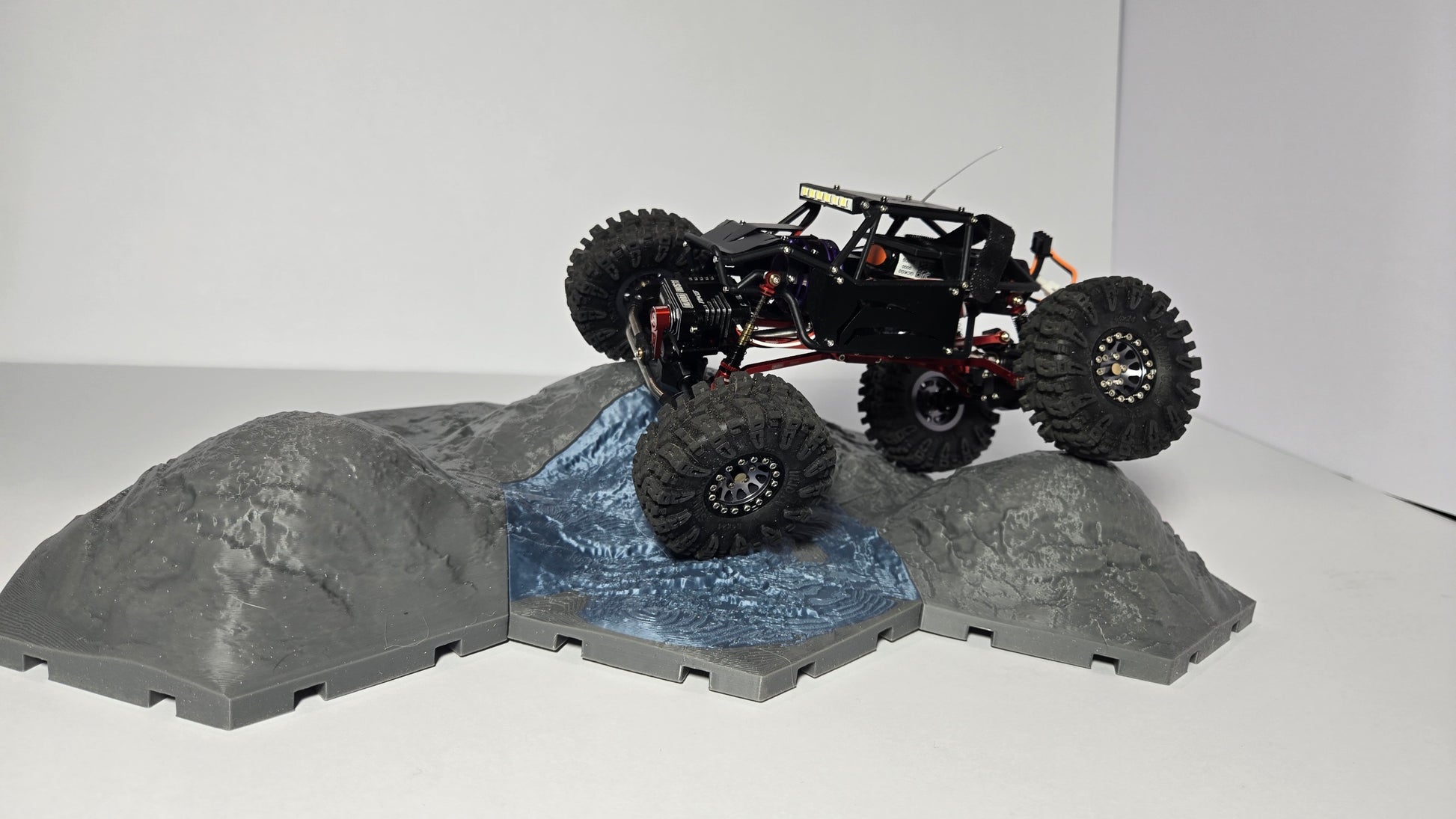

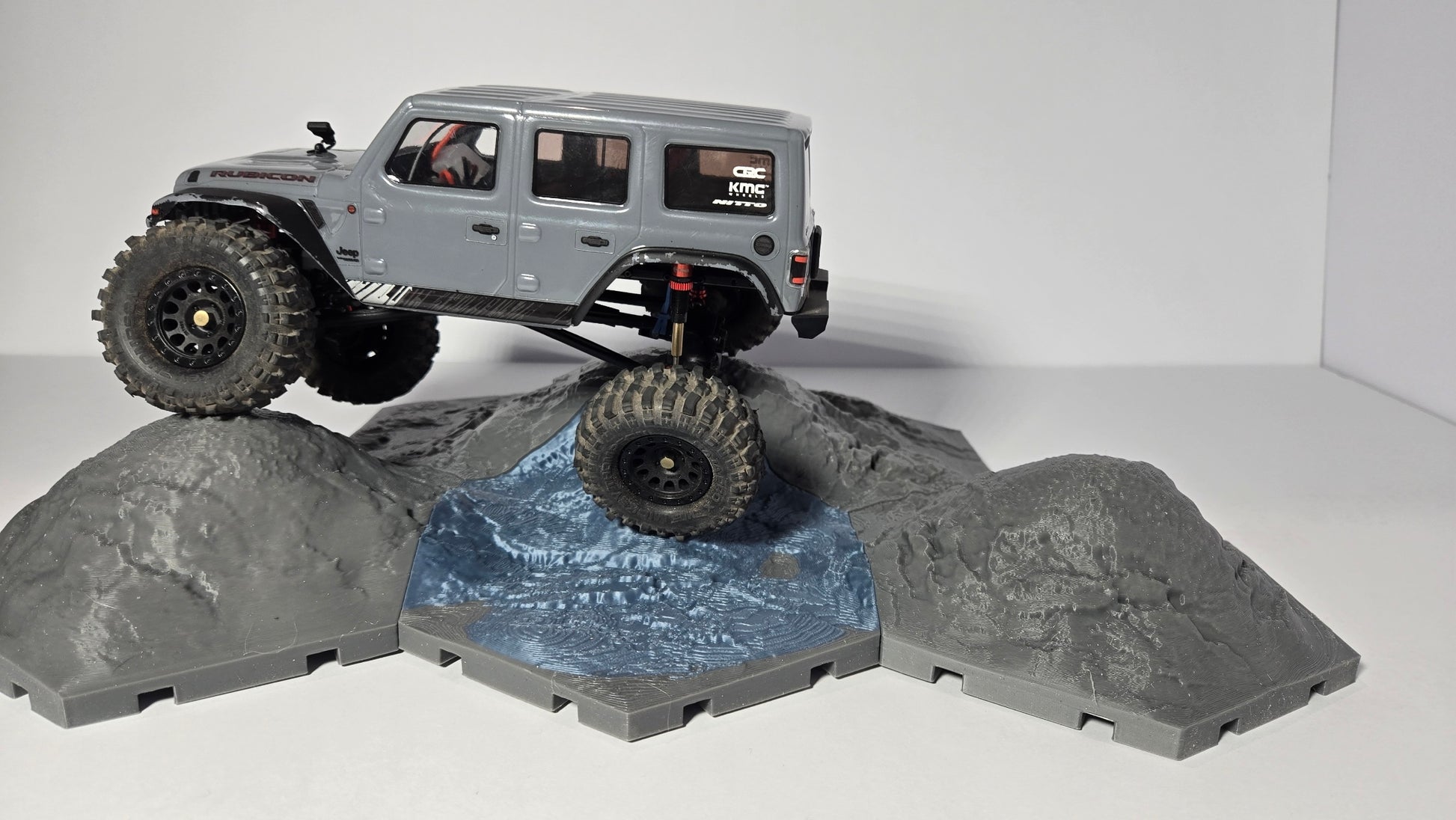

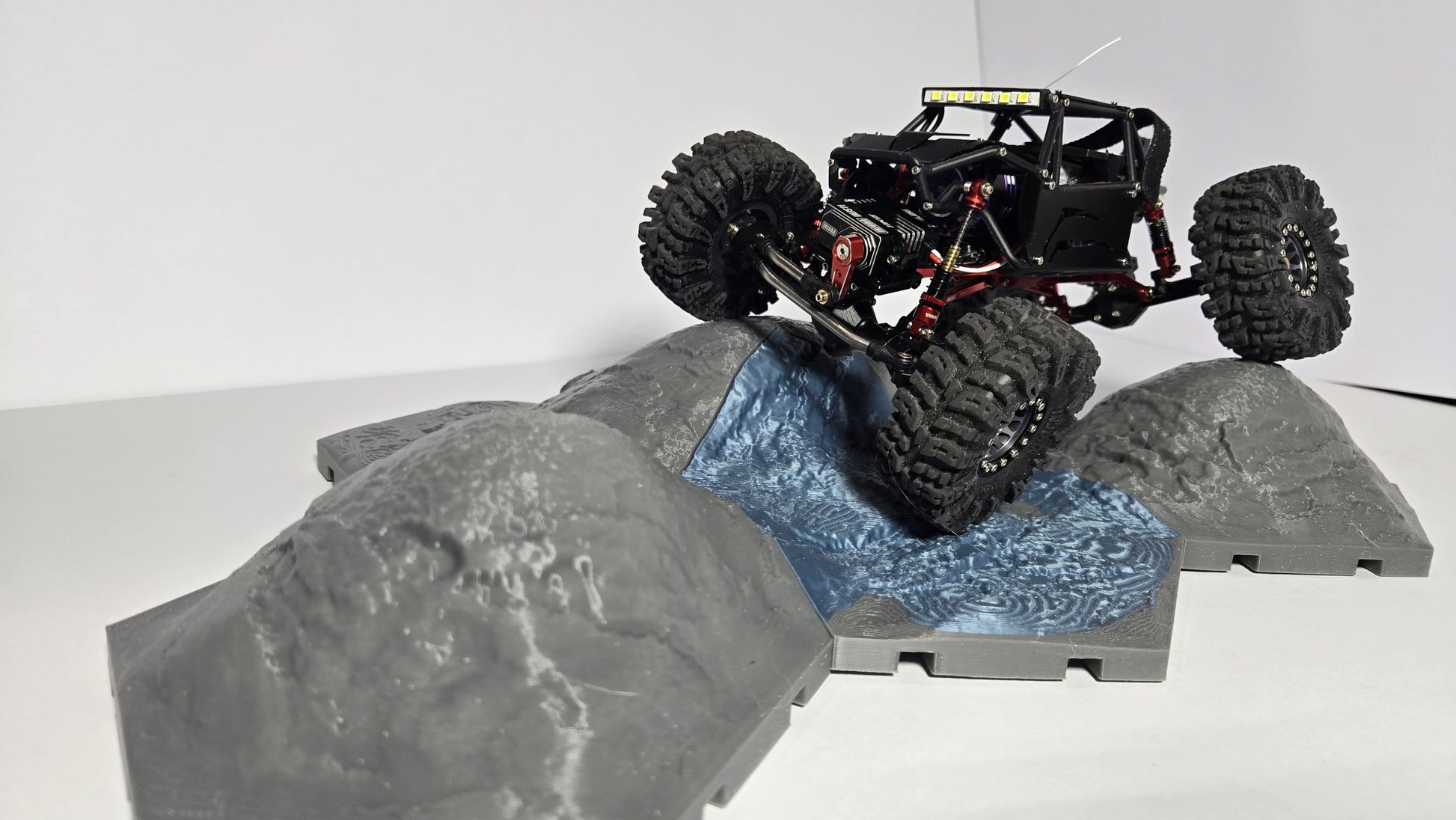

This obstacle is designed to flex out your rig. Don't let the 2" mounds fool you, they spaced to flex your rig 2" in each direction for an equivalent 4" articulation!! this is a good one for modified rigs.
You can link them with the other obstacles to increase the difficulty as you progress.
Each tile is 150mm wide (~6") and are interlocked by locking pins underneath.
Join our CRAWLAGON facebook group and show off your builds.
ENJOY!!!!
- Designed by Dirt Digg-ler Offroad LLC DBA CRAWLAGON™, all rights reserved, for personal use only, No commercial use.
Printer Settings:
- Level your bed properly to avoid locking pin problems. If you have trouble with leveling, try printing with a raft.

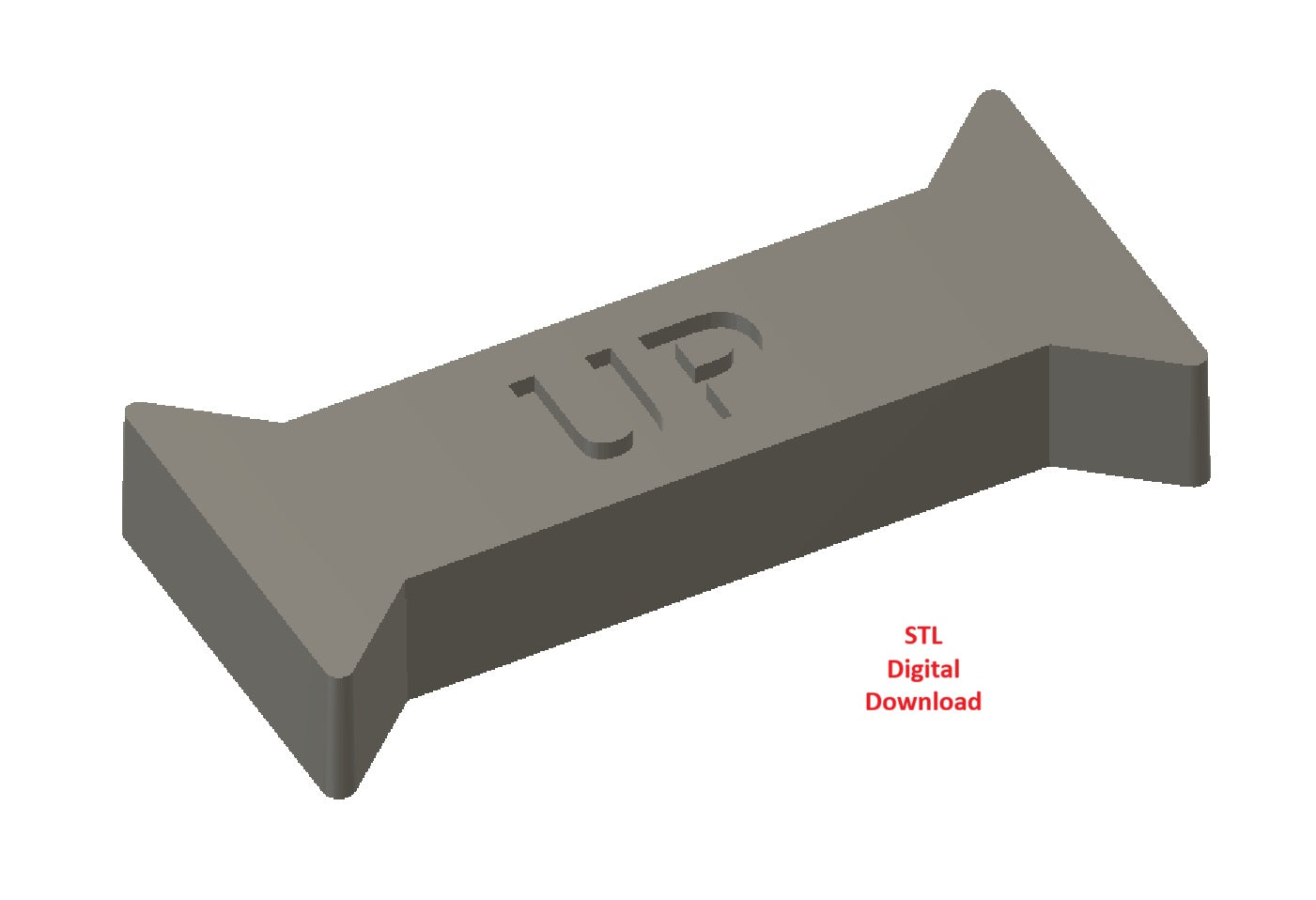

- Different sized pins are included to compensate for any bed leveling issues and different materials.
- I can print these models on my Bambu Labs A1 without supports, even with sharp undercuts. Other printers might require support structures.
- I now use, 4 top layer, 4 bottom layer, 2 sidewall, 10% sparse infill adaptive cubic. saves a ton of time and material. but might require the +.1 pins.
