XL - Glyn Arch *Now with Grip!!*

********3D Print Files Only!*********

Digital Download Only, 3d Print .stl files

*********************************

*Added Grip version 12/23/2025

XL - CRAWLAGON! Glyn Arch  *Now with Grip!*
RC rock crawling system for 1/32 - 1/18 scale crawlers.
Fully expandable and customizable RC Crawler course, Sky's the limit!

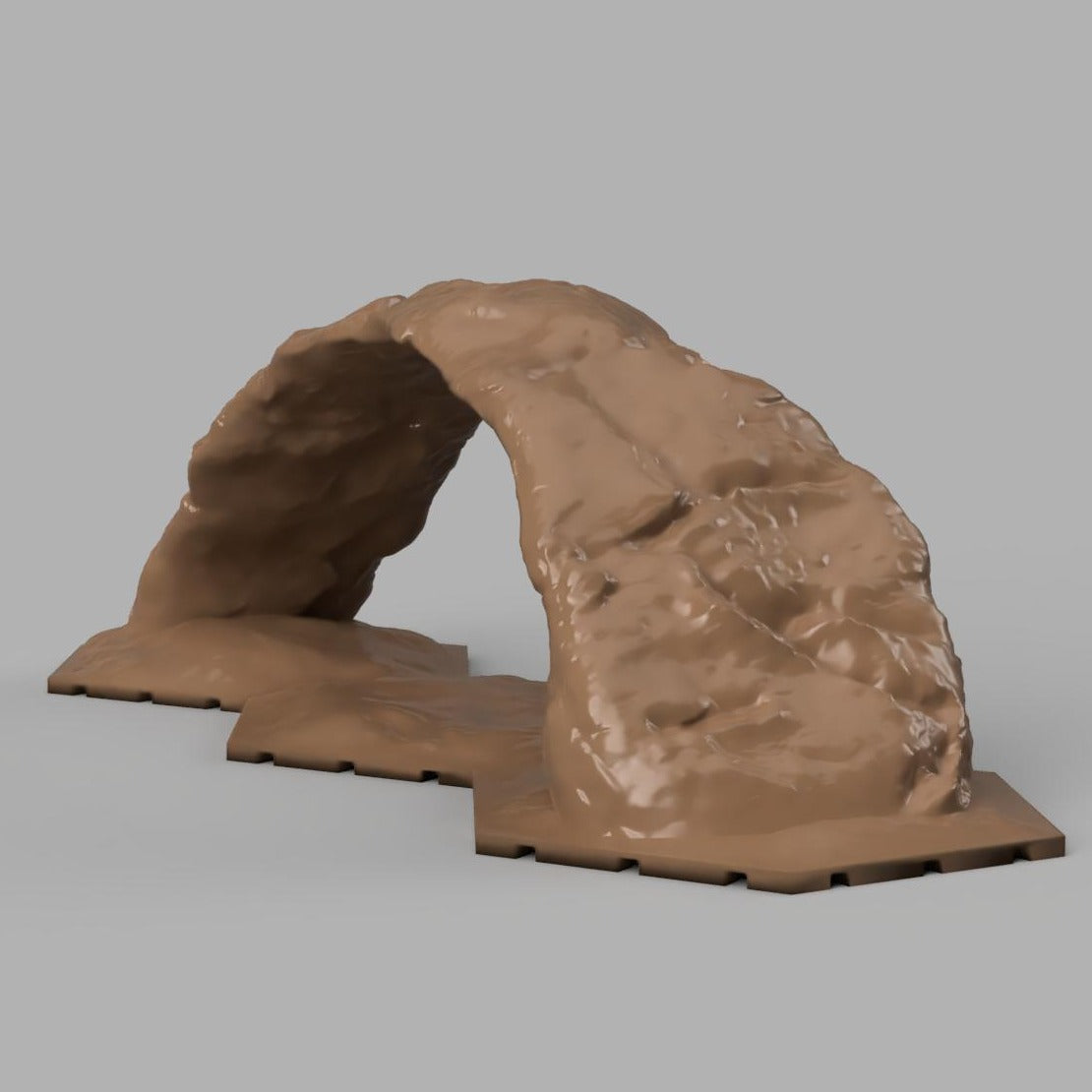

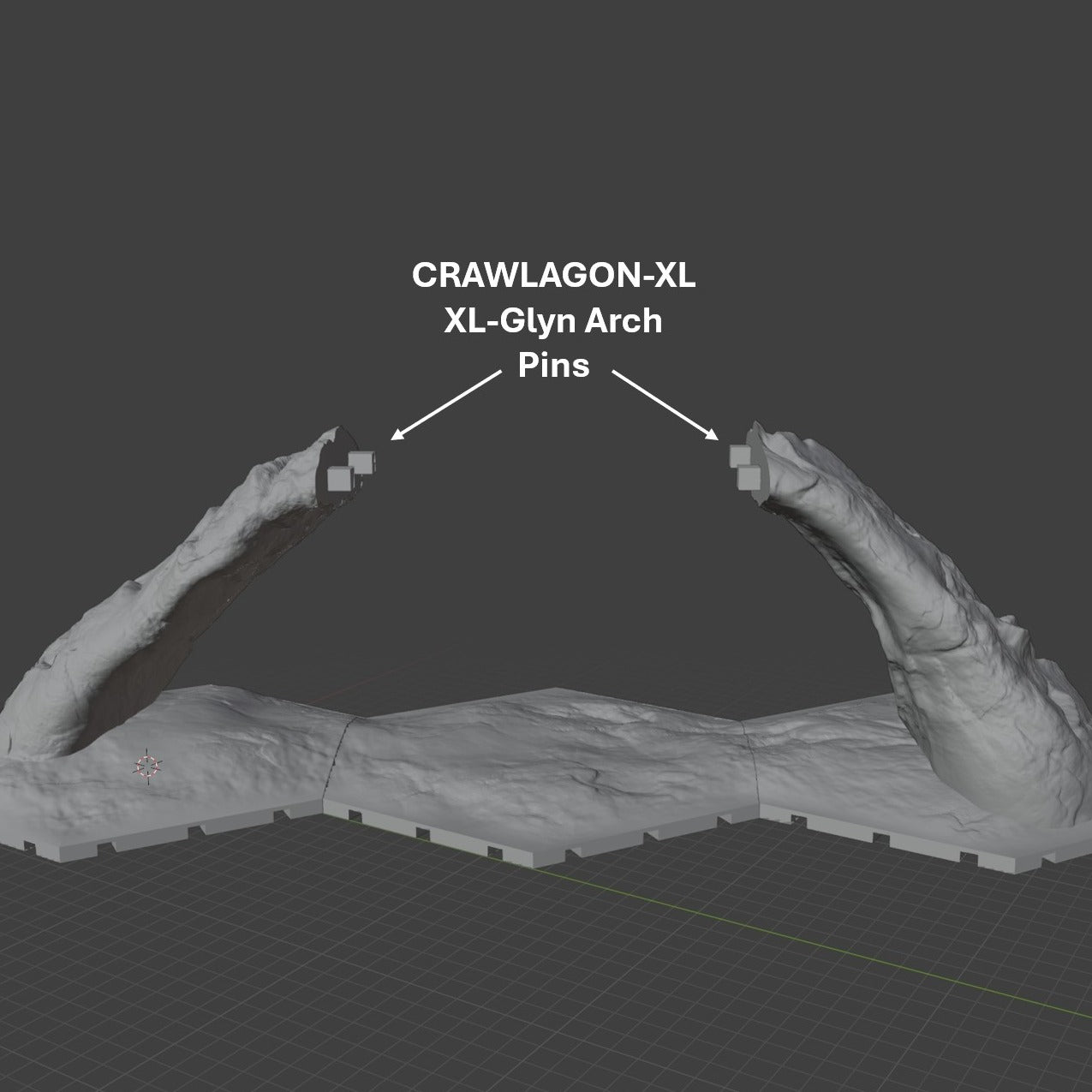

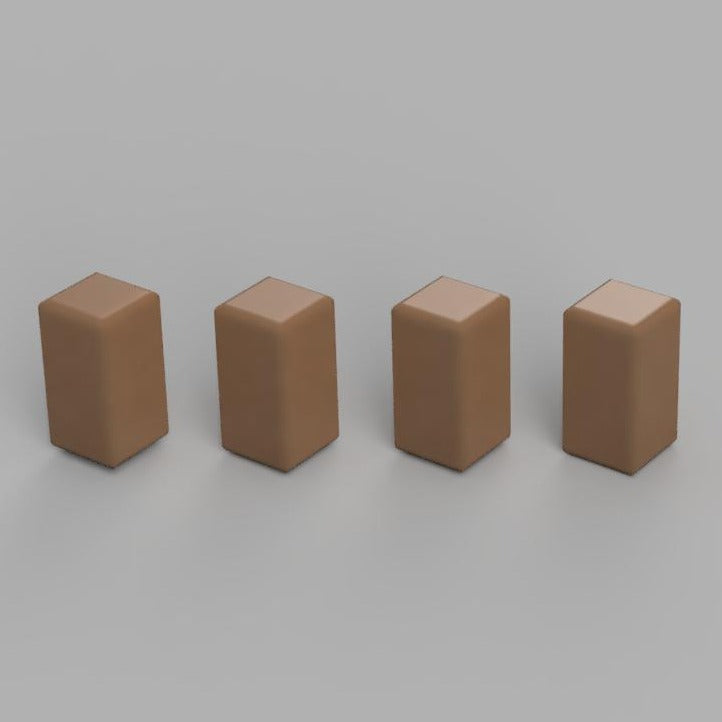

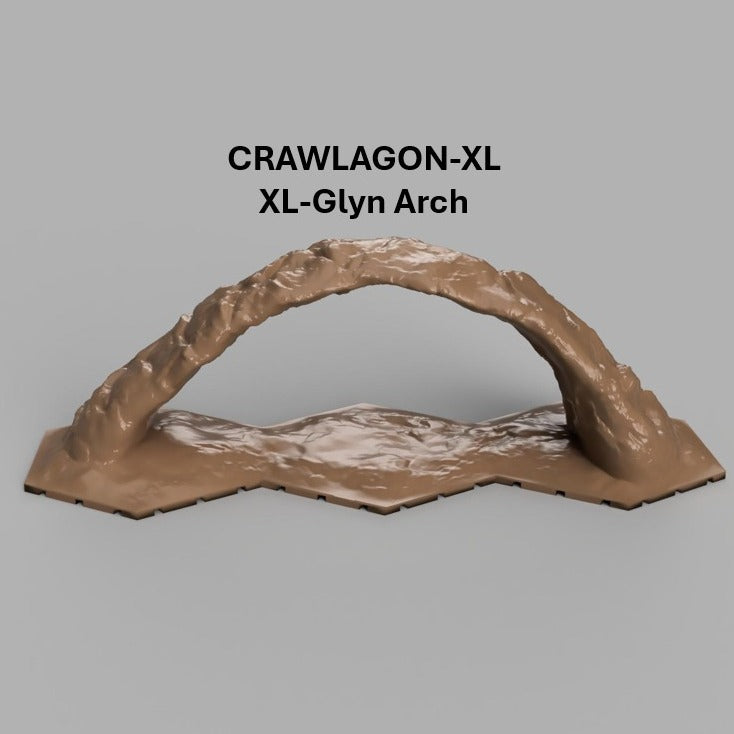

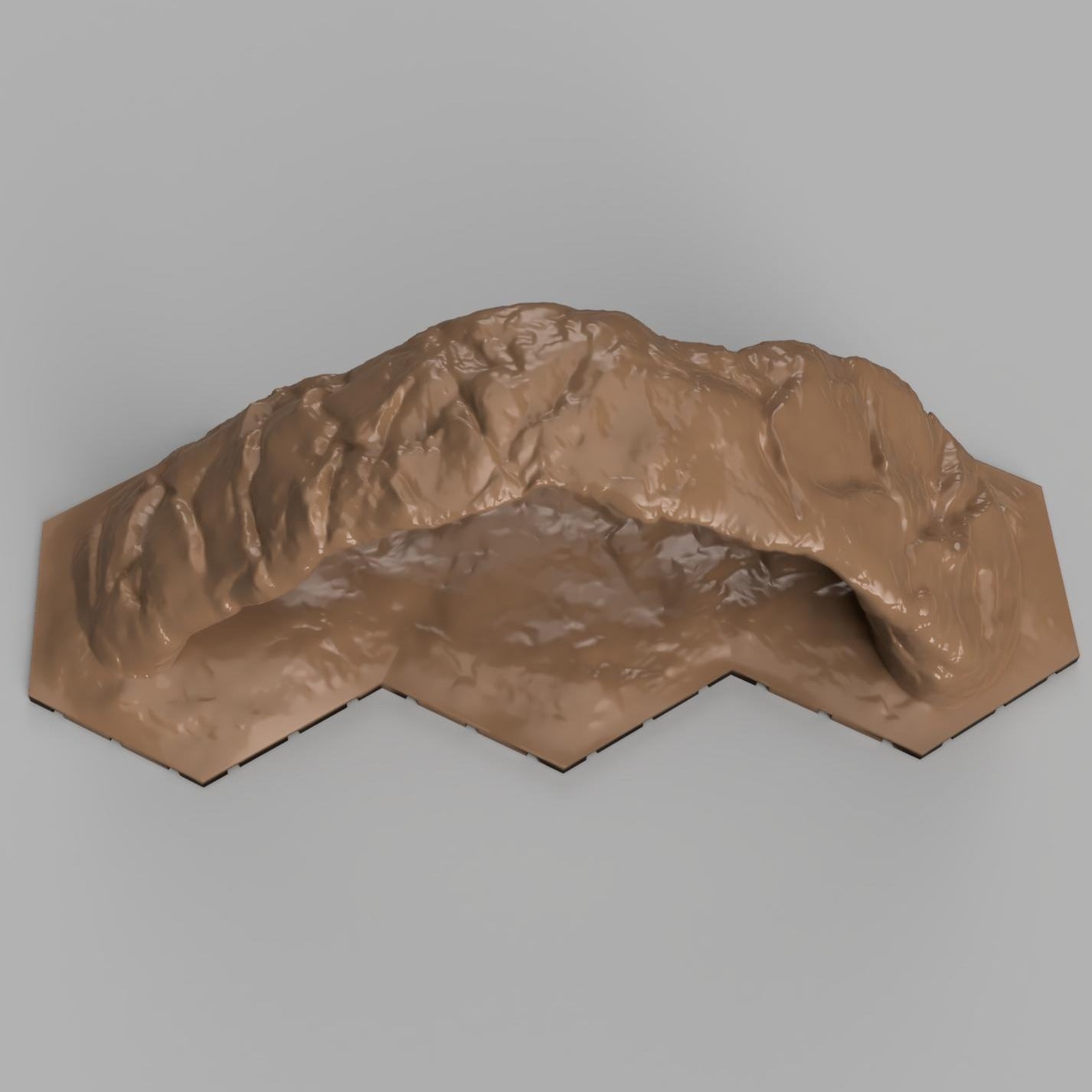

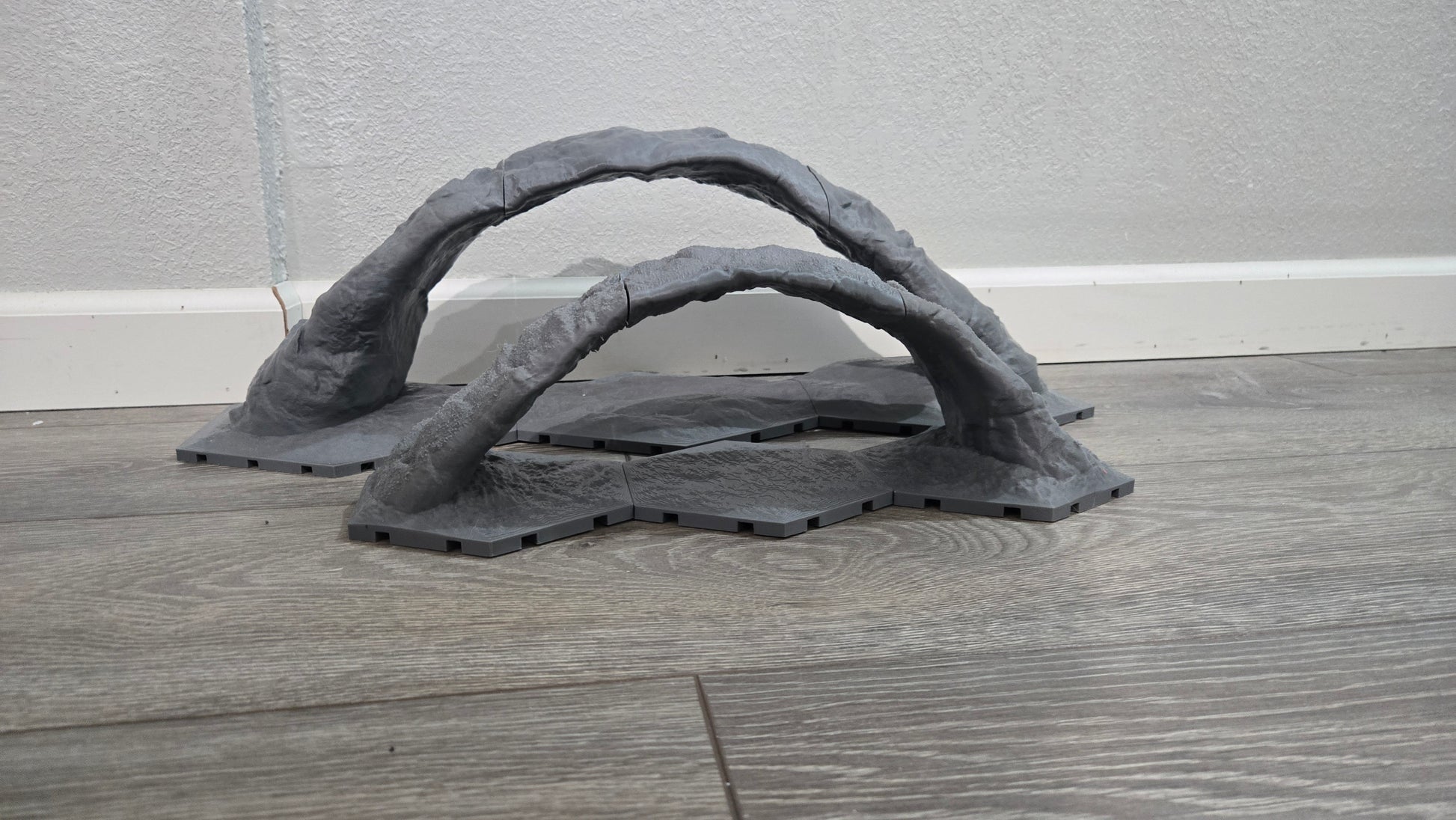

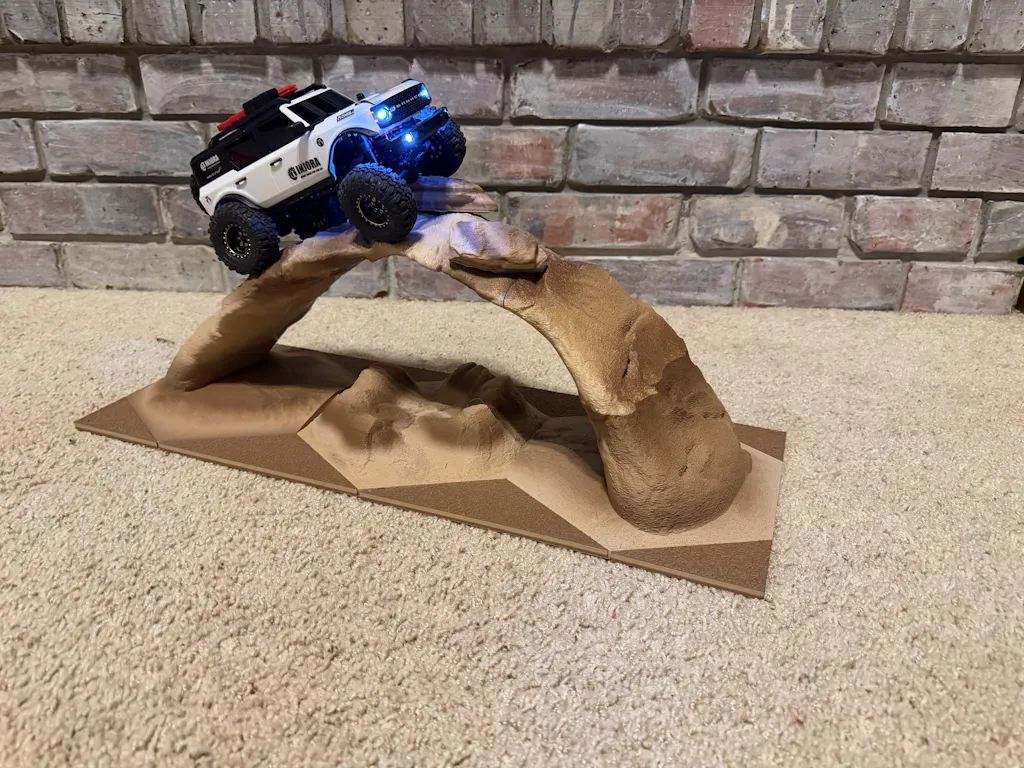

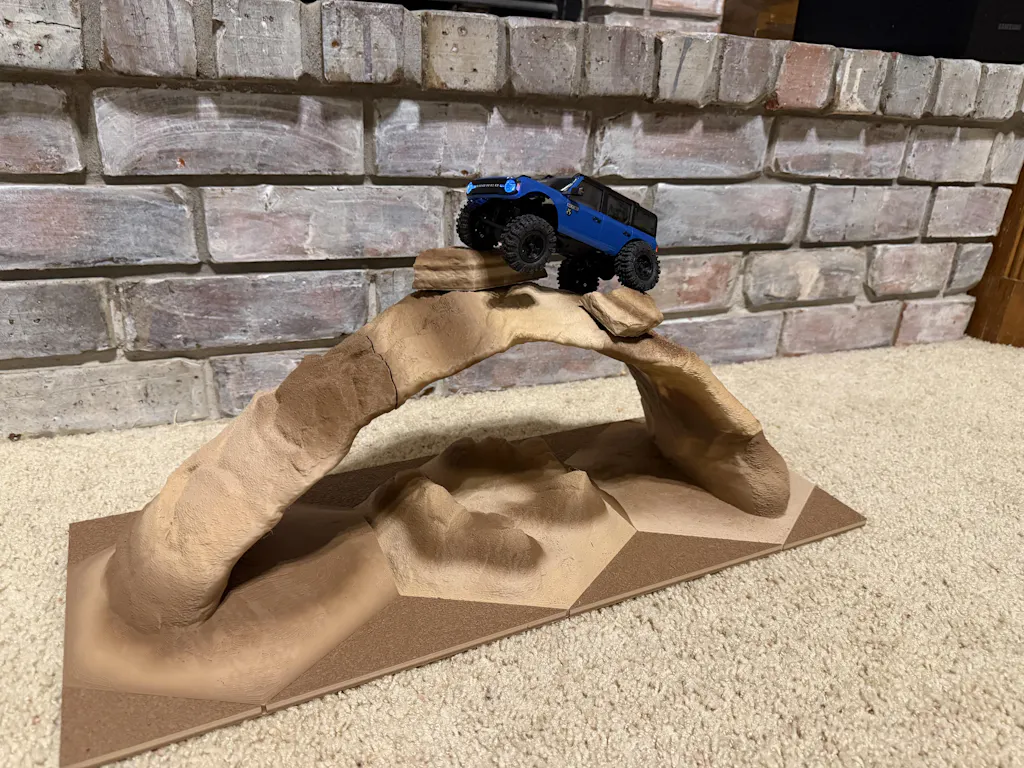

This Arch is on the XL tile platform. The center section is held together by 4 dowel pins. I was able to print that top section rotated 90 deg without any supports on my bambu labs A1 printer.
I designed it wide enough that you can drive over it but you will need a longer wheel base vehicle or give it a bit of a run to get up it!

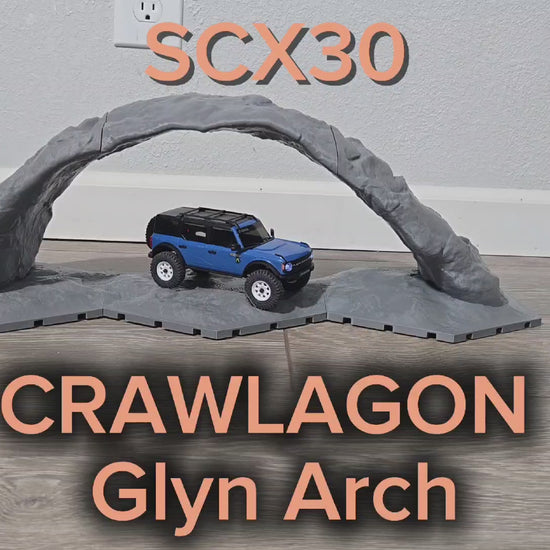

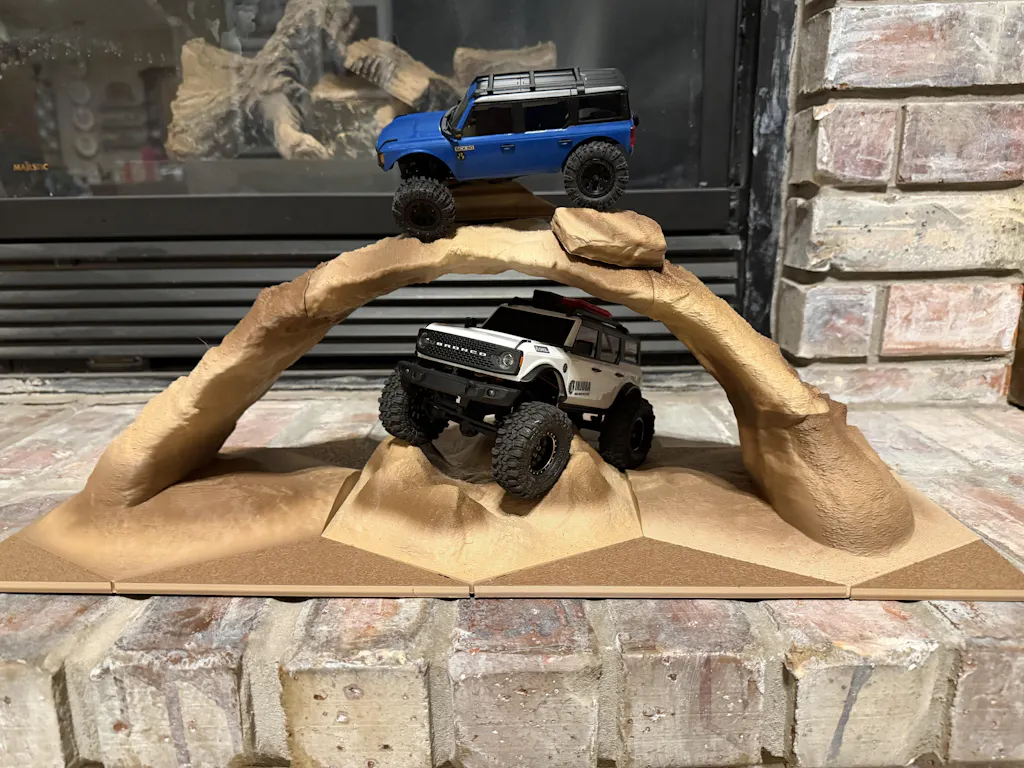

it is also tall enough to drive most Scx24s and TRX4ms under it!

Now includes both Grip and No Grip files!

Purchase is for XL - Glyn Arch
- Designed by Dirt Digg-ler Offroad LLC DBA CRAWLAGON™, all rights reserved, for personal use only, No commercial use.

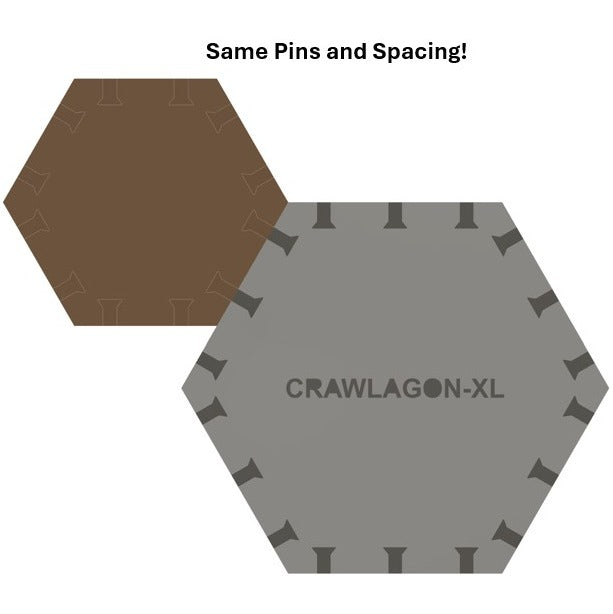

Each XL tile is 225mm wide (CRAWLAGON Standards are 150mm) and are interlocked by locking pins underneath.
You can configure and re-configure any way you would like!

Join our CRAWLAGON facebook group and show off your builds.
ENJOY!!!!

Print Instructions
- *** WHEN PRINTING THE TEXTURED TILES YOU WILL GET AN ERROR IN YOUR SLICER. JUST PRINT ANYWAY AND IT WILL WORK. DO NOT ADD SUPPORTS***
- Level your bed properly to avoid locking pin problems. If you have trouble with leveling, try printing with a raft.
- Different sized pins are included to compensate for any bed leveling issues and different materials.
- I can print these models on my Bambu Labs A1 without supports, even with sharp undercuts. Other printers might require support structures.
- Use a consistent 15% infill setting to avoid fitment problems. Changing infill percentages can affect wall shrinkage. If needed, you can add more wall loops to compensate and additional sized pins are included.
- If you are trying to conserve material on these big prints I have had luck running: Top Layers 4, Bottom Layers 4, Walls 3, infill Lightning 15%. (the walls and base will flex but hold up fine to the weight of a crawler)
